环境搭建
下载项目https://github.com/l4yn3/micro_service_seclab
然后放入 IDEA 即可，之后运行
这里主要研究 SSRFSSRF 的漏洞代码
package com.l4yn3.microserviceseclab.controller;import com.squareup.okhttp.Call;
import com.squareup.okhttp.OkHttpClient;
import com.squareup.okhttp.Response;
import org.apache.http.HttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.apache.http.client.fluent.Request;import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.URL;@RestController
@RequestMapping(value = "/ssrf")
public class SSRFController {@RequestMapping(value = "/one")
public String One(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setRequestMethod("GET");
return connection.getResponseMessage();
} catch (IOException var3) {
System.out.println(var3);
return "Hello";
}
}@RequestMapping(value = "/two")
public String Two(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}@RequestMapping(value = "/three")
public String Three(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
OkHttpClient client = new OkHttpClient();
com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();
Call call = client.newCall(request);
Response response = call.execute();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
@RequestMapping(value = "/four")
public String Four(@RequestParam(value = "url") String imageUrl) {
try {
DefaultHttpClient client = new DefaultHttpClient();
HttpGet get = new HttpGet(imageUrl);
HttpResponse response = client.execute(get);
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}@RequestMapping(value = "five")
public String Five(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
InputStream inputStream = url.openStream();
return String.valueOf(inputStream.read());
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
}
但是这个不太明显我修改了一下这样更好观察
package com.l4yn3.microserviceseclab.controller;import com.squareup.okhttp.Call;
import com.squareup.okhttp.OkHttpClient;
import com.squareup.okhttp.Response;
import org.apache.http.HttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.apache.http.client.fluent.Request;import java.io.IOException;
import java.io.InputStream;
import java.net.HttpURLConnection;
import java.net.URL;@RestController
@RequestMapping(value = "/ssrf")
public class SSRFController {@RequestMapping(value = "/one")
public String One(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setRequestMethod("GET");
return connection.getResponseMessage();
} catch (IOException var3) {
System.out.println(var3);
return "Hello";
}
}@RequestMapping(value = "/two")
public String Two(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}@RequestMapping(value = "/three")
public String Three(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
OkHttpClient client = new OkHttpClient();
com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();
Call call = client.newCall(request);
Response response = call.execute();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
@RequestMapping(value = "/four")
public String Four(@RequestParam(value = "url") String imageUrl) {
try {
DefaultHttpClient client = new DefaultHttpClient();
HttpGet get = new HttpGet(imageUrl);
HttpResponse response = client.execute(get);
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}@RequestMapping(value = "five")
public String Five(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
InputStream inputStream = url.openStream();
return String.valueOf(inputStream.read());
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
}
http://127.0.0.1:8888/ssrf/one?url=http://www.baidu.com
成功
漏洞分析
我们首先需要看明白造成 SSRF 漏洞的类型
HttpURLConnection 发起请求
@RequestMapping(value = "/one")
public String One(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setRequestMethod("GET");
return connection.getResponseMessage();
} catch (IOException var3) {
System.out.println(var3);
return "Hello";
}
}
HttpURLConnection 是 Java 标准库中的一个类，用于通过 URL 发起 HTTP 请求。这里直接将用户提供的 URL 用来创建连接，并发送 GET 请求
而且 URL 我们可以控制，造成了 ssrf
Apache HttpClient
@RequestMapping(value = "/two")
public String Two(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
这里使用了 Apache HttpClient（通过 fluent API）发起 HTTP 请求。用户提供的 URL 被用来发起 GET 请求，并返回响应。
OkHttp
@RequestMapping(value = "/three")
public String Three(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
OkHttpClient client = new OkHttpClient();
com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();
Call call = client.newCall(request);
Response response = call.execute();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
OkHttp 是一个比 HttpURLConnection 和 HttpClient 更现代的 HTTP 客户端，它的设计更注重性能和易用性。
DefaultHttpClient
@RequestMapping(value = "/four")
public String Four(@RequestParam(value = "url") String imageUrl) {
try {
DefaultHttpClient client = new DefaultHttpClient();
HttpGet get = new HttpGet(imageUrl);
HttpResponse response = client.execute(get);
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
这段代码使用的是 Apache HttpClient 中的 DefaultHttpClient 类，HttpGet 请求方式用于发起 HTTP 请求。DefaultHttpClient 是 HttpClient 的一个实现，它提供了更丰富的功能和配置选项。
openStream
@RequestMapping(value = "five")
public String Five(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
InputStream inputStream = url.openStream();
return String.valueOf(inputStream.read());
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
URL.openStream() 方法打开用户提供的 URL 并读取数据。openStream() 方法本质上是执行了一次 HTTP 请求，获取响应的字节流。
codeql 分析
首先就是 sink 点的匹配
官方的规则库相当的复杂，包含的类型远远比我们这五种多
其中定义在 RequestForgeryConfig 类
我们看注释
/**
* DEPRECATED: Use `RequestForgeryConfiguration` module instead.
*
* A taint-tracking configuration characterising request-forgery risks.
*/
描述请求伪造风险的污点跟踪配置。
我们的 SSRF 类型就属于 request-forgery 风险
source 点分析
RemoteFlowSource
override predicate isSource(DataFlow::Node source) {
source instanceof RemoteFlowSource and
// Exclude results of remote HTTP requests: fetching something else based on that result
// is no worse than following a redirect returned by the remote server, and typically
// we're requesting a resource via https which we trust to only send us to safe URLs.
not source.asExpr().(MethodCall).getCallee() instanceof UrlConnectionGetInputStreamMethod
}
首先是 RemoteFlowSource
我们跟进
/** A data flow source of remote user input. */
abstract class RemoteFlowSource extends SourceNode {
/** Gets a string that describes the type of this remote flow source. */
abstract string getSourceType();override string getThreatModel() { result = "remote" }
}
很明显看注释远程用户输入的数据流源
我们看到实现类，这里很多
这里就拿
private class SpringServletInputParameterSource extends RemoteFlowSource {
SpringServletInputParameterSource() {
this.asParameter() = any(SpringRequestMappingParameter srmp | srmp.isTaintedInput())
}override string getSourceType() { result = "Spring servlet input parameter" }
}
SpringServletInputParameterSource 来举个例子
首先我们需要知道什么是 SpringRequestMappingParameter 参数
这个就不跟了，因为也不是重点，就是
SpringRequestMappingParameter() { this.getCallable() instanceof SpringRequestMappingMethod }
参数的调用方法是 spring 中请求映射的方法即可，这个大家跟了就会明白
isTaintedInput 呢看注释就可以明白
predicate isTaintedInput() {
this.isExplicitlyTaintedInput()
or
// Any parameter which is not explicitly identified, is consider to be an `@RequestParam`, if
// it is a simple bean property) or a @ModelAttribute if not
not this.isNotDirectlyTaintedInput()
}
}
isTaintedInput() 是一个用于判断输入是否为污点的谓词
然后我们可以查查看
随便点几个
大家看这个截图应该能明白到底匹配了些什么 source，其实就是 spring 中用户可控的输入
排除的 source
not source.asExpr().(MethodCall).getCallee() instanceof UrlConnectionGetInputStreamMethod
跟过去
/** The method `java.net.URLConnection::getInputStream`. */
class UrlConnectionGetInputStreamMethod extends Method {
UrlConnectionGetInputStreamMethod() {
this.getDeclaringType() instanceof TypeUrlConnection and
this.hasName("getInputStream") and
this.hasNoParameters()
}
}
就是排除某些远程请求：然后，排除所有通过 HttpURLConnection.getInputStream 方法发起的远程请求。这是因为 getInputStream 方法通常用于安全地获取远程资源，例如通过 HTTPS 请求访问外部 URL，不把这些认为是可疑的
Sink 点
override predicate isSink(DataFlow::Node sink) { sink instanceof RequestForgerySink }
跟进 RequestForgerySink 类
abstract class RequestForgerySink extends DataFlow::Node { }private class DefaultRequestForgerySink extends RequestForgerySink {
DefaultRequestForgerySink() { sinkNode(this, "request-forgery") }
}
他的实现类是 DefaultRequestForgerySink 类，而匹配的是 request-forgery 类型
sinkNode 就是标记特定的数据流的，而 request-forgery 表示被标记的类型
而我们怎么知道哪些是 request-forgery 类型呢？
codeql 有一堆配置好了的类型

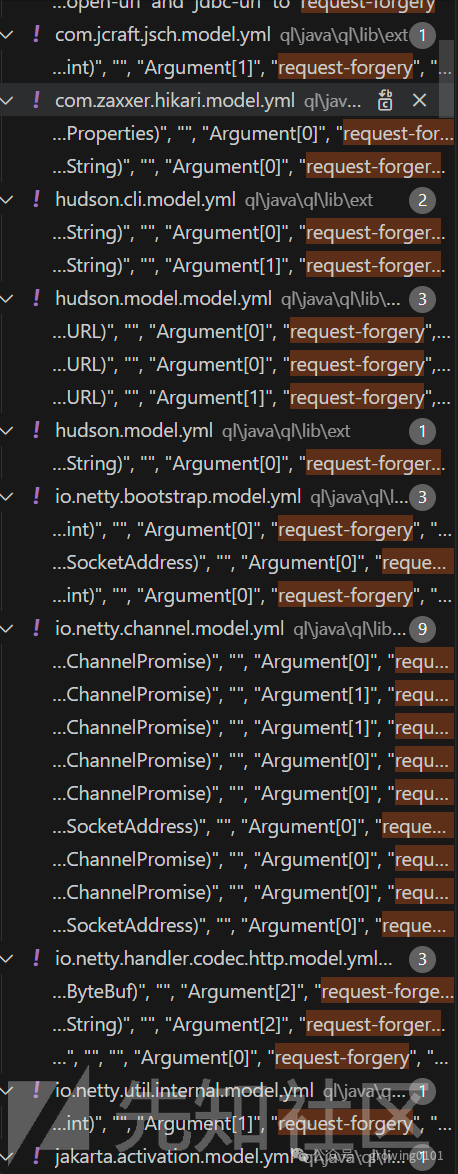

我们可以全局搜索 request-forgery
可以看出来大概是以所在的包名来分的
比如 okhttp 这种很小众的
@RequestMapping(value = "/three")
public String Three(@RequestParam(value = "url") String imageUrl) {
try {
URL url = new URL(imageUrl);
OkHttpClient client = new OkHttpClient();
com.squareup.okhttp.Request request = new com.squareup.okhttp.Request.Builder().get().url(url).build();
Call call = client.newCall(request);
Response response = call.execute();
return response.toString();
} catch (IOException var1) {
System.out.println(var1);
return "Hello";
}
}
我们找找这个包
可以看到是有的
isAdditionalTaintStep
这个很好理解，就是可能污点不能从 a 到 b 去追踪，但是实际的情况 a 到 b 就是一个传播过程，这时候我们就需要自己去跟踪污点了
override predicate isAdditionalTaintStep(DataFlow::Node pred, DataFlow::Node succ) {
any(RequestForgeryAdditionalTaintStep r).propagatesTaint(pred, succ)
}
跟进 RequestForgeryAdditionalTaintStep
private class TypePropertiesRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep
{
override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {
exists(MethodCall ma |
// Properties props = new Properties();
// props.setProperty("jdbcUrl", tainted);
// Propagate tainted value to the qualifier `props`
ma.getMethod() instanceof PropertiesSetPropertyMethod and
ma.getArgument(0).(CompileTimeConstantExpr).getStringValue() = "jdbcUrl" and
pred.asExpr() = ma.getArgument(1) and
succ.asExpr() = ma.getQualifier()
)
}
}
一共是两个具体的实现类
DefaultRequestForgeryAdditionalTaintStep
private class DefaultRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep {
override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {
// propagate to a URI when its host is assigned to
exists(UriCreation c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)
or
// propagate to a URL when its host is assigned to
exists(UrlConstructorCall c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)
}
}
其中 UriCreation 代表的是
class UriCreation extends Call {
UriCreation() {
this.getCallee().getDeclaringType() instanceof TypeUri and
(this instanceof ClassInstanceExpr or this.getCallee().hasName("create"))
}
比如
// 例 1：通过字符串创建 URI
URI uri1 = new URI("http://example.com/path");// 例 2：通过 URI.create 创建 URI
URI uri2 = URI.create("http://example.com/path");
UrlConstructorCall代表的是
UrlConstructorCall() { this.getConstructor().getDeclaringType() instanceof TypeUrl }
也就是匹配构造函数的，不过匹配的是
URL url = new URL("http://example.com"); // 通过 URL 构造函数创建 URL 对象
一个是 URI，一个是 URL
而 propagatesTaint 方法就是我们逻辑的主要实现
比如 UriCreation
如果其主机部分（host） 被赋值为 pred.asExpr()（即当前污点源），并且 succ.asExpr()（即潜在的污点目标）是这个 UriCreation 对象时，污点就会从 pred 传播到 succ。
比如下面的代码
String userInput = request.getParameter("url"); // 假设这是用户输入的数据
URI uri = URI.create(userInput); // 使用用户输入创建 URI 对象
URL url = new URL(userInput); // 使用用户输入创建 URL 对象
我们的规则就是
当 userInput 被用作创建 URI 或 URL 时，污点就会从 userInput 传播到 uri 和 url 对象上。
如果没有那么我们的传播就是
userInput-->URI.create(userInput)
这一步它会跟丢，找不到了
TypePropertiesRequestForgeryAdditionalTaintStep
private class TypePropertiesRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep
{
override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {
exists(MethodCall ma |
// Properties props = new Properties();
// props.setProperty("jdbcUrl", tainted);
// Propagate tainted value to the qualifier `props`
ma.getMethod() instanceof PropertiesSetPropertyMethod and
ma.getArgument(0).(CompileTimeConstantExpr).getStringValue() = "jdbcUrl" and
pred.asExpr() = ma.getArgument(1) and
succ.asExpr() = ma.getQualifier()
)
}
}
注释给的很清楚了
就是如下的这种也需要污点传播
Properties props = new Properties();
String userInput = request.getParameter("jdbcUrl"); // 假设这是用户输入的数据
props.setProperty("jdbcUrl", userInput); // 设置 JDBC URL 为用户输入
通过这种方式，我们可以确保污点传播被追踪到 Properties 对象
isSanitizer
emmm，理解为清理的意思吧，就是有些点不是我们的点，可能控制的部分并不能造成漏洞
override predicate isSanitizer(DataFlow::Node node) { node instanceof RequestForgerySanitizer }
跟进 RequestForgerySanitizer
有许多的实现类
HostnameSantizer
HostnameSanitizingPrefix() {
// Matches strings that look like when prepended to untrusted input, they will restrict
// the host or entity addressed: for example, anything containing `?` or `#`, or a slash that
// doesn't appear to be a protocol specifier (e.g. `http://` is not sanitizing), or specifically
// the string "/".
exists(this.getStringValue().regexpFind("([?#]|[^?#:/\\\\][/\\\\])|^/$", 0, offset))
}override int getOffset() { result = offset }
}/**
* A value that is the result of prepending a string that prevents any value from controlling the
* host of a URL.
*/
private class HostnameSantizer extends RequestForgerySanitizer {
HostnameSantizer() { this.asExpr() = any(HostnameSanitizingPrefix hsp).getAnAppendedExpression() }
}
比如http://example.com/page?name=value 中的 ?name=value 是查询部分，我们只能控制后面的，这种就不算一个点
RelativeUrlSanitizer
private predicate isRelativeUrlSanitizer(Guard guard, Expr e, boolean branch) {
guard =
any(MethodCall call |
call.getMethod().hasQualifiedName("java.net", "URI", "isAbsolute") and
e = call.getQualifier() and
branch = false
)
}/**
* A check that the URL is relative, and therefore safe for URL redirects.
*/
private class RelativeUrlSanitizer extends RequestForgerySanitizer {
RelativeUrlSanitizer() {
this = DataFlow::BarrierGuard<isRelativeUrlSanitizer/3>::getABarrierNode()
}
}
就是需要满足我们传入的是绝对的路径，这个 codeql 的代码还是很复杂的
比如这端代码
import java.net.URI;public class UrlValidator {
public static boolean validateUrl(String url) {
URI uri = URI.create(url);// 检查URL是否是绝对的
if (uri.isAbsolute()) {
return true; // 这是绝对 URL
}
return false; // 这是相对 URL
}public static void main(String[] args) {
String testUrl = "http://example.com";
boolean isValid = validateUrl(testUrl);
System.out.println("Is valid: " + isValid);
}
}
call.getMethod().hasQualifiedName("java.net", "URI", "isAbsolute")：这部分会匹配 URI 类中的 isAbsolute() 方法。
然后
e = call.getQualifier()：call.getQualifier() 返回的是 uri 对象，即调用 isAbsolute() 方法的那个对象。因此，e 需要与 uri 对象匹配。
branch = false：这意味着我们正在查找方法调用的“否”分支，也就是 uri.isAbsolute() 返回 false 的情况。
确保我们可控的是绝对的 uri
当然还有一些......大家自己看看
codeql 实践
我们运行最后的代码
没有二和三
只有三个从 sink 到 source 的点，但是我们是有五个的，这个的话就需要慢慢检测了
首先其实 sink 点是没有问题的
问题出现在污点传播的过程中
可以看到https://forum.butian.net/share/2117位师傅
问题出现是在正常情况下程序不会觉得 String.valueOf 方法返回的仍然是污点。
这里我们就需要自己去修改了
这里我们需要按照上面分析的同理去操作
还是回到这个代码
RequestForgery.qll
我们只需要续写一下 DefaultRequestForgeryAdditionalTaintStep
首先需要匹配到 valueOf 的代码，然后提取里面的参数
HttpResponse response = Request.Get(String.valueOf(url)).execute().returnResponse();
调用者是 String
首先我们去匹配这个类型
class TypeStringLib extends RefType {
TypeStringLib() { this.hasQualifiedName("java.lang", "String") }
}
然后只需要使用如下的代码
class StringValue extends MethodAccess {
StringValue(){
this.getCallee().getDeclaringType() instanceof TypeStringLib and
this.getCallee().hasName("valueOf")
}
}
成功的匹配到
然后续写
private class DefaultRequestForgeryAdditionalTaintStep extends RequestForgeryAdditionalTaintStep {
override predicate propagatesTaint(DataFlow::Node pred, DataFlow::Node succ) {
// propagate to a URI when its host is assigned to
exists(UriCreation c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)
or
// propagate to a URL when its host is assigned to
exists(UrlConstructorCall c | c.getHostArg() = pred.asExpr() | succ.asExpr() = c)
or
exists(StringValue c | c.getArgument(0) = pred.asExpr() | succ.asExpr() = c)
}
}
然后我们再去查询
可以看到是已经成功了
如果你是一个长期主义者，欢迎加入我的知识星球，我们一起往前走，每日都会更新，精细化运营，微信识别二维码付费即可加入，如不满意，72 小时内可在 App 内无条件自助退款
往期回顾
参考https://forum.butian.net/share/2117
原文: https://xz.aliyun.com/t/17030
如有侵权请联系:admin#unsafe.sh
